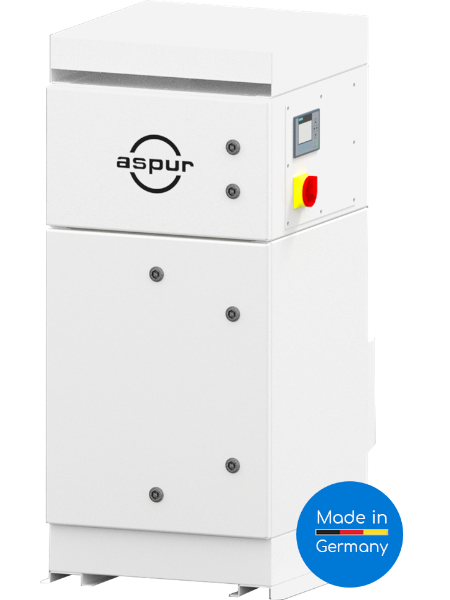

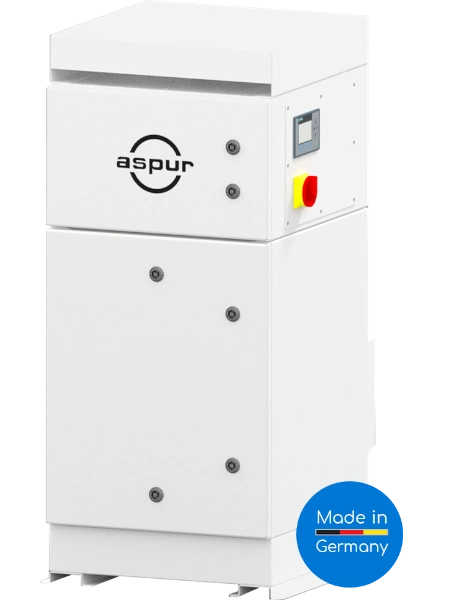

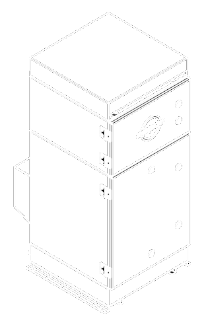

ASPUR sopra1 attachment device
Oil mist separator sopra1 attachment dev
Oil mist separators of the sopra assembly are used in the manufacturing industry to extract and reliably separate oil mist, emulsion mist, aqueous solutions, fumes and gases* with proportionate solids precisely at the point of origin. The attachment units are installed on machining centers, milling machines or lathes. The recirculation of the cleaned air complies with the current TRGS guidelines. Due to the integrated multi-stage filters, the units achieve a separation efficiency of HEPA H13.
*) only with activated carbon filter
The devices are equipped with EC high-performance blowers. These can be continuously adjusted to the desired outputs by means of a control system and potentiometer. Due to this equipment, only the actually necessary power is called up, which reduces the power consumption.
Large access doors, which extend over the entire height and width of the modules, allow the user quick and service-friendly access to all components. In addition, all filter systems are designed so that they can be changed without tools.
The high-quality filter system with integrated HEPA H13 filter, stands for a long operating time with simultaneous best separation results.
Due to the modular design, HEPA filters, activated carbon filters, explosion and fire protection systems as well as various discharge systems can be added according to the customer's individual requirements and, under certain circumstances, retrofitted at a later date.
Standard equipment
Optional equipment
Product data
Product features |
|---|
| High-quality, multi-stage filter system |
| Integrated H13 filter |
| Simple, fast and tool-free filter changing |
| Coarse filter replaceable |
| Drive with EC high power blower |
| Large access door on one side (service-friendly) |
Order our oil mist seperator sopra1 attachment dev for your milling machines!
Optional device features |
|---|
| Pump for recirculation of the separated liquids |
| Completely available in stainless steel design |
| All RAL colors in powder coating |
| Activated carbon filtersystem |
| Explosion and fire protection equipment |
| Control cabinet with frequency converter and display (user-friendly) |
Order our oil mist seperator sopra1 attachment dev for your milling machines!
Areas of application |
|---|
| Processes |
| Lasering, welding, cutting |
| Materials |
| Aerosole, vapors |
| Fume, smoke |
Order now our storage filter sopra1 attachment dev for your milling machines!
Technical data
| sopra1 EC 1.4 AD | |
|---|---|
| Item no. | 9030012 |
| Drive | EC high-pressure blower |
| Air volume flow | max. 940 m³/h |
| Negative pressure | max. 5000 PA |
| Drive power | 1.4 kW |
| Voltage² | 230 V / 400 V |
| Sound emission | 63 dB(A) |
| Weigth | 100 kg |

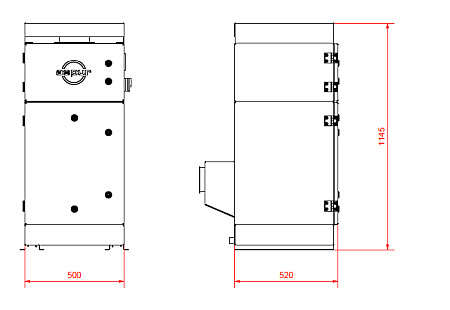

| Dimensions (l,w,h) | 500x520x1145 mm |
| Dimensions¹ (l,w,h) | 500x670x1145 mm |
| Intake port (d) | 100 mm |
| Dust coll. container | 25 L |
| Powder coating | RAL9016 mat |
| Main filter multi-level | Cartridge filter |
| Filter surface | 8 m² |
| Filter surface load | 117 m³/m²/h |
| Controller³ | Siemens Logo® |
²) 230V or 400V optionally
³) Siemens Logo with Modbus TCP or Harting plug optionally
Optional features
| sopra1 EC 1.4 AD | |
|---|---|
| HEPA H14 filter | yes |
| Dust Ex-Zone 22 | yes |
| Dust Ex-Zone 21 | no |
| Gas Ex-Zone 2 | no |
| Gas Ex-Zone 1 | no |
| Explosion prevention* | yes |
| Fire prevention* | yes |
| Activated carbon filter | yes |
| Stainless steel version | yes |
All data are subject of technical changes.
Special features
- ASPUR-MODULAR-DESIGN - Structure in modular assemblies, enables extensive variety of variants
- ASPUR-DOOR-SYSTEM - Large doors for barrier-free access
- ASPUR-NOISE-ELIMINATOR - With reduced noise level due to motor sound insulation
- ASPUR-SAFETY-FILTERCHANGE - Simple, tool-free filter change
- ASPUR EXPANSIONS-ANSAUGSYSTEM - Baffle plate, deflection and abrupt expansion of the intake process air, reduces the filter load and enables coarse particle separation
