OIL MIST SEPARATOR
FOR APPLICATION IN DRILLING, LATHING AND MILLING
ASPUR AEROG1
DESIGNED FOR THE EXTRACTION OF AEROSOLS, VAPORS AND FUMES
ASPUR aerog1

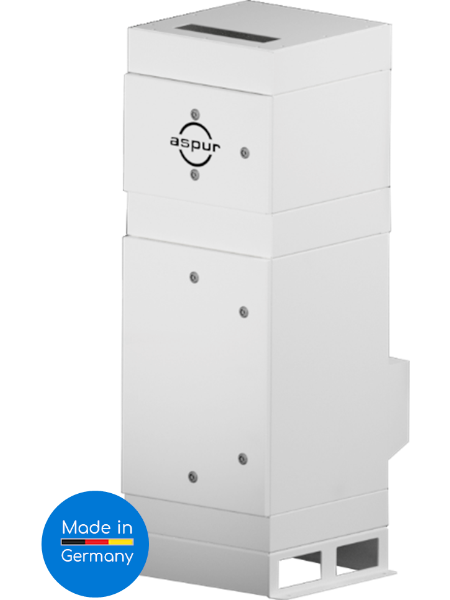

Oil mist separator ASPUR aerog1

Oil mist separators of the aerog1 assembly are used in the manufacturing industry to extract and safely separate oil mist, emulsion mist, aqueous solutions, fumes and gases* with proportionate solids. The installation of the units indoors and the recirculation of the cleaned air comply with the current TRGS guidelines.
*) nur mit Aktivkohlefilter
The plants are equipped with Siemens IE3 motors of the latest generation. Together with the installed frequency converter, the motors can be variably adjusted to the desired outputs. Due to this equipment, only the actually necessary power is called up, which reduces power consumption and wear.
Large access doors installed on one side, which extend over the entire height and width of the modules, allow the user quick and service-friendly access to all components. In addition, all filter systems are designed to be changed without tools. The high-quality filter system with integrated HEPA H13 filter, stands for a long operating time with simultaneous best separation results.
Due to the modular design, HEPA filters, activated carbon filters, explosion and fire protection systems as well as various discharge systems can be added according to the customer's individual requirements and, under certain circumstances, updgraded at a later date.
 Standard equipment
 Optional equipment

Product data

Product features

High-quality, multi-stage filter system
Integrated H13 filter
Simple, fast and tool-free filter changing
Coarse filter replaceable
Large access doors on both sides (service-friendly)
IE3 centrifugal fan of the latest generation
Control cabinet with frequency inverter and display (user-friendly)

Order our oil mist seperator aerog1 for your workplaces!

Optional device features

Gas-Ex Z2 and Z1
Pump for recirculation of the separated liquids
Completely available in stainless steel design
All RAL colors in powder coating in powder coating
Activated carbon filtersystem
Explosion and fire protection equipment

Order our oil mist seperator aerog1 for your workplaces!

Areas of application

Processes
Lasering, welding, cutting» click here

Materials
Aerosole, vapors» click here
Fume, smoke» click here

Order now our storage filter airsorb2 for your workplaces!

Technical data

  aerog1 EC 1.4
aerog1 EC 4.0
aerog1 D 0.55
Item no. 9030005 9030006 9030007
Drive EC high-pressure blower EC high-pressure blower Centrifugal fan
Air volume flow max. 940 m³/h max. 2000 m³/h max. 1400 m³/h
Negative pressure max. 5000 PA max. 5000 PA max. 1600 PA
Drive power 1.4 kW 4.0 kW 0.55 kW
Voltage 230 V 400 V 400 V
Sound emission 63 dB(A) 65 db(A) 63 dB(A)
Weight 130 kg 140 kg 150 kg

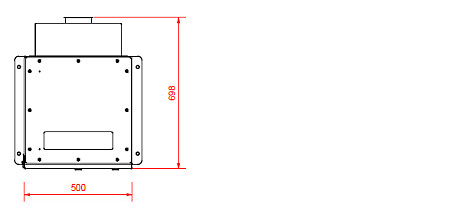

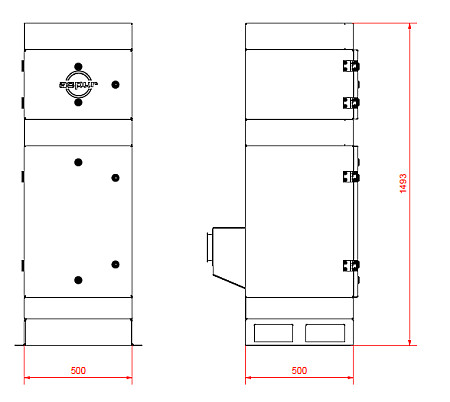

Dimensions (l,w,h) 500x520x1490 mm 500x520x1490 mm 500x520x1490 mm
Dimensions¹ (l,w,h) 700x700x1490 mm 700x700x1490 mm 700x700x1490 mm
Intake port (d) 100 mm 100 mm 100 mm
Dust coll. container² 50 L 50 L 50 L
Powder coating RAL9016 mat RAL9016 mat RAL9016 mat
Main filter multi-level Cartridge filter Cartridge filter Cartridge filter
Filter surface 8 m² 8 m² 8 m²
Filter surface load 117 m³/m²/h 250 m³/m²/h 175 m³/m²/h
Controller³ Siemens Logo® Siemens Logo® Siemens Logo®
¹) Oil mist prefilter   ²) Dust collection container expandable   ³) With Modbus TCP connection
Right trimmed columns can be scrolled (wiped) to the left!

Optional features
  aerog1 EC 1.4
aerog1 EC 4.0
aerog1 D 0.55
HEPA H14 filter yes yes yes
Dust Ex-Zone 22 yes yes yes
Dust Ex-Zone 21 no no yes
Gas Ex-Zone 2 no no yes
Gas Ex-Zone 1 no no yes
Explosion prevention* yes yes yes
Fire prevention* yes yes yes
Activated carbon filter yes yes yes
Stainless steel version yes yes yes
*) For indoor installation
Data are subject of technical changes.
Right trimmed columns can be scrolled (wiped) to the left!

Oil mist separator ASPUR aerog1
Special features

  • ASPUR-MODULAR-DESIGN  - Structure in modular assemblies, enables extensive variety of variants
  • ASPUR-DOOR-SYSTEM  - Large doors for barrier-free access
  • ASPUR-NOISE-ELIMINATOR - With reduced noise level due to motor sound insulation
  • ASPUR-SAFETY-FILTERCHANGE - Simple, tool-free filter change
  • ASPUR EXPANSIONS-ANSAUGSYSTEM - Baffle plate, deflection and abrupt expansion of the intake process air, reduces the filter load and enables coarse particle separation
Oil mist separator ASPUR aerog1
Device features
ASPUR Oil mist separator aerog1

Oil mist separator controller
Made in

Germany
