ASPUR ame2

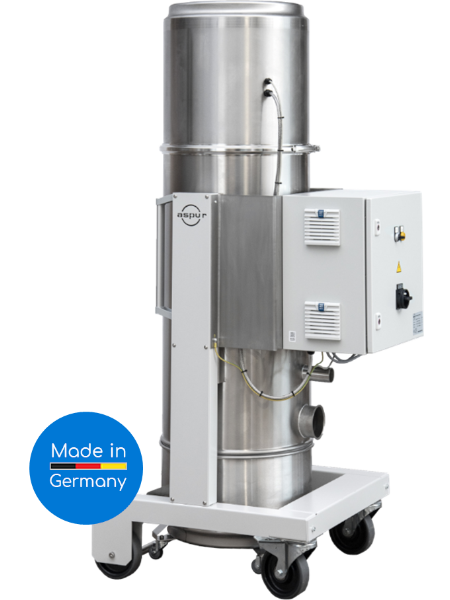

Mobile deduster ASPUR ame2
The chassis of the deduster made of 3mm steel plate is very stable and offers a comfortable and high quality unit with the stainless steel round tanks.
The mobile deduster has an EC high-performance blower which can be continuously adjusted from 0-100%. These motors can be used in continuous operation. The sound insulation hood protects the blower from external influences, is easy to clean and reduces noise emissions.
The intake velocity is slowed down considerably in the expansion area, where the dust enters the filter container. The dust can thus enter the collection container at a slower rate. At the same time, the filter unit is protected by the expansion.
A collection container equipped with 5 swivel castors can be easily lowered and extended by means of a hand lever. A PE-bag is inserted in the container, where the dust is collected and can be easily removed and disposed. This low-dust disposal option reduces dust emissions during disposal and protects the operator.
High-quality wheels and swivel casters with stoppers provide very good driving comfort of the unit. Large push handles allow easy maneuvering.
The cartridge filter category "M", with integrated electric unbalance motor for cleaning, safely filters out fine dust and coarse particles. After the fan is switched off, the shaker is started manually or automatically and causes the cartridge filter to vibrate so that adhering fine dust falls into the collection container.
Standardausstattung
Optional equipment
Product data
Produkt features |
|---|
| Container stainless steel |
| Chassis powder coated RAL 9016 matt |
| Dust collection tank 50l is lowerable and extendable |
| Large push handles |
| Industrial castors with stopper and wheels D160, conductive |
| High-quality star filter "M" with electrical filter cleaning |
| EC blower suitable for use in continuous operation |
| Enclosed motor with sound insulation |
| Control cabinet or Harting controller |
Order now our mobile deduster ame2 for your workplaces!
Product options |
|---|
| GMP-compliant design |
| Completely in stainless steel design |
| All RAL colors in powder coating |
| Endless bag with flap |
| Activated carbon filtersystem |
| HEPA H14 filter |
| Precoating system for sticky process dust |
| Siemens LOGO control unit with display and Modbus |
Order now our mobile deduster ame2 for your workplaces!
Areas of application |
|---|
| Processes |
| Filling, mixing |
| Packaging |
| Materials |
| Dust, fine particles |
| Fibers, fabrics |
| Clips |
Bestellen Sie jetzt unseren Mobilen Entstauber ame2 für ihren Arbeitsplatz!
Technical data
| ame2 EC 1.4 | ame2 EC 4.0 | |
|---|---|---|
| Item no. | 9040002 | 9040000 |
| Fan typ | EC High-pressure blower | EC High-pressure blower |
| Air volume flow | max. 940 m³/h | max. 2000 m³/h |
| Negative pressure | max. 5000 PA | max. 5000 PA |
| Drive power | 1.4 kW | 4.0 kW |
| Voltage | 230 V | 400 V |
| Sound emission | 62 dB(A) | 64 db(A) |
| Weight | 108 kg | 112 kg |

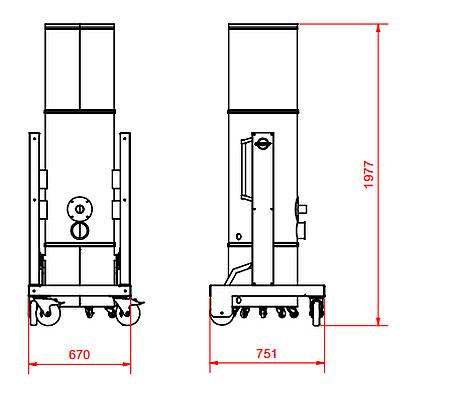

| Dimensions (l,w,h) | 670x750x1980 mm | 670x750x1980 mm |
| Intake port (d) | 100 mm | 100 mm |
| Dust coll. container¹ | 50 L | 50 L | Powder coating | RAL9016 mat | RAL9016 mat | Main filter typ M | Star filter | Star filter |
| Filter surface | 6 m² | 6 m² |
| Filter surface load | 155 m³/m²/h | 330 m³/m²/h |
| Controller | Siemens Logo® | Siemens Logo® |
Right trimmed columns can be scrolled (wiped) to the left!
Optional features
| ame2 EC 1.4 | ame2 EC 4.0 | |
|---|---|---|
| HEPA filter class H14 | yes | yes |
| Dust Ex-Zone 22 | no | no |
| Dust Ex-Zone 21 | no | no |
| Gas Ex-Zone 2 | no | no |
| Gas Ex-Zone 1 | no | no |
| Explosion prevention* | yes | yes |
| Fire prevention* | yes | yes |
| Activated carbon filter | yes | yes |
| Harting plug | yes | yes |
| Stainless steel version | yes | yes |
Right trimmed columns can be scrolled (wiped) to the left!
Special features
- Stable chassis with electrically conductive industrial wheels
- Drive unit encapsulated, sound-proofed
- Bag filter cat. "M" BIA, with electrical filter cleaning system
- Collection tank stainless steel, lowerable and extendable with bottom-rounded PE-bag
Device features
