ASPUR AERO2 ECO
DESIGNED FOR EXTRACTION OF ORGANIC AND INORGANIC PROCESS DUSTS, FUMES AND DRY MEDIA.
STANDARD DEDUSTER
FOR APPLICATION IN LASER CUTTING, WELDING, CUTTING, FILLING AND PACKAGING
ASPUR aero2eco

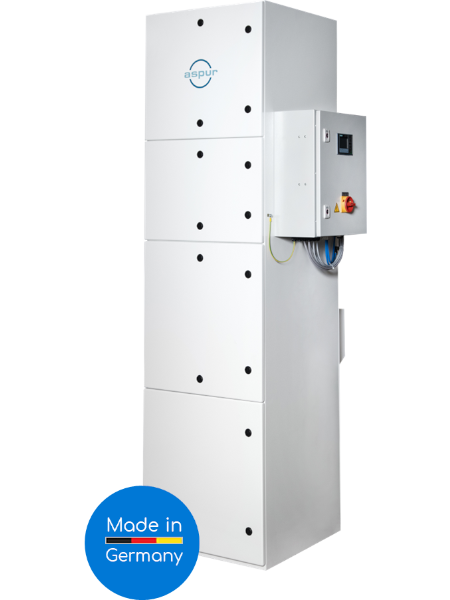

Deduster ASPUR aero2eco

The aero2eco deduster is the smallest model in the aero series and safely extracts dust, smoke, chips and gases* from processing machines and collects them either in a container, hobbock, dust bag or endless bag system. The very stable housing is made of 3mm sheet steel or stainless steel and can be supplied in almost any RAL color. Standard is powder coating RAL 9016.
* only with activated carbon filter
The devices are equipped with the latest filters, which can be changed without tools. Large access doors installed on both sides, which extend over the entire height and width of the modules, allow the user a quick and service-friendly access to all components.
Drive
The drive is provided by EC high-performance fans or centrifugal fans with Siemens IE3 motors of the latest generation. All variants can be used in multi-shift operation. The required air volume flow can be set manually or optionally automatically using the integrated frequency converter.
Controller
A Rittal control cabinet with Siemens LOGO® modules and display as well as integrated Siemens frequency converter (or identical) enables manual or automatic adjustment to the desired performance parameters of the unit. This reduces unnecessary power consumption.
The integrated differential pressure sensor enables constant monitoring of the filter conditions. Via the Modbus equipment, all functions of the deduster can also be controlled by a customer's control system and operated from there.

Filter cartridge
The main filter cartridges are cleaned using the jet filter principle (JetPulse). The aluminum compressed air tank mounted above is automatically regulated by the control system according to time and/or differential pressure. All filters are easy to service and can be replaced without tools.
Thanks to the modular design, HEPA filters, activated carbon filters and other filter systems can be changed or added according to the customer's individual wishes and, under certain circumstances, upgraded at a later date.

Dust container
The standard unit includes a round, lowerable and extendable stainless steel dust container with push handle and conductive, steerable industrial castors. Optionally, a tinplate disposal container or bag can be inserted. Alternatively, the unit is also available with a flap and endless bag for dust-free disposal.
 Standard equipment
 Optional equipment

Product data

Product features

High quality filtersystem
Integrated H14 filter (optional)
Simple, fast, tool-free filter change (replacable pre-filter)
Large access doors (service friendly)
Drives: IE3 centrifugal fans and EC high-performance blowers
Control cabinet with frequency converter and display (user-friendly)
Incl. Modbus TCP control and 24V potential-free contact

Order now our dust extractor aero2eco for your workplace!

Optional device features

Gas-Ex Z2 and Z1
Dust-Ex Z22 and Z21
UL, CCC, GMP-compliant design
Stainless steel version
All RAL colors in powder coating
Activated carbon filter system
Fire protection equipment
Explosion protection equipment
HEPA H14 filter
Endless bag with flap
Precoating system for sticky process dust

Order now our dust extractor aero2eco for your workplace!

Areas of application

Processes
Lasering, welding, cutting» click here
Filling, mixing» click here
Packaging» click here

Materials
Fume, smoke» click here
Dust, fine particles» click here

Order now our dust extractor aero2eco for your workplace!

Technical data

  aero2eco EC 1.1 aero2eco EC 2.2 aero2eco EC 1.4 aero2eco EC 2.8 aero2eco EC 4.0 aero2eco D 1.1
Item no. 9110012 9110013 9020152 9020153 9020154 9020141
Fan typ EC high-pressure fan EC high-pressure fan EC high-pressure fan EC high-pressure fan EC high-pressure fan Centrifugal fan
Air volume flow max. 360 m³/h max. 720 m³/h max. 940 m³/h max. 1880 m³/h max. 2000 m³/h max. 2200 m³/h
Negative pressure max. 11000 PA max. 11000 PA max. 5000 PA max. 5000 PA max. 5000 PA max. 2200 PA
Drive power 1.1 kW 2x 1.1 kW 1.4 kW 2x 1.4 kW 4.0 kW 1.1 kW
Voltage 230 V 230 V 230 V 230 V 400 V 400 V
Sound emission 62 dB(A) 64 db(A) 63 dB(A) 65 db(A) 65 dB(A) 67 dB(A)
Weigth 265 kg 270 kg 270 kg 275 kg 280 kg 310 kg

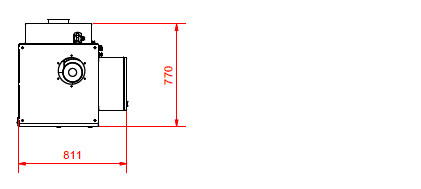

Dimensions (l,w,h) 600x600x2200 mm 600x600x2200 mm 600x600x2200 mm 600x600x2200 mm 600x600x2200 mm 600x600x2200 mm
Dimensions¹ (l,w,h) 800x800x2200 mm 800x800x2200 mm 800x800x2200 mm 800x800x2200 mm 800x800x2200 mm 800x800x2200 mm
Intake port (d) 100 mm 100 mm 100 mm 150 mm 150 mm 150 mm
Dust coll. container² 50 L 50 L 50 L 50 L 50 L 50 L
Powder coating RAL9016 mat RAL9016 mat RAL9016 mat RAL9016 mat RAL9016 mat RAL9016 mat
Main filtertyp M 4x Cartridge filter 4x Cartridge filter 4x Cartridge filter 4x Cartridge filter 4x Cartridge filter 4x Cartridge filter
Filter surface 24 m² 24 m² 24 m² 24 m² 24 m² 24 m²
Filter surface load 15 m³/m²/h 30 m³/m²/h 39 m³/m²/h 67 m³/m²/h 75 m³/m²/h 104 m³/m²/h
Controller Siemens Logo® Siemens Logo® Siemens Logo® Siemens Logo® Siemens Logo® Siemens Logo®
¹) Incl. extraction box & control cabinet   ²) Dust collection container with rollers
Right trimmed columns can be scrolled (wiped) to the left!

Optional features
  aero2eco EC 1.1 aero2eco EC 2.2 aero2eco EC 1.4 aero2eco EC 2.8 aero2eco EC 4.0 aero2eco D 1.1
HEPA filter class H14 yes yes yes yes yes yes
Dust Ex-Zone 22 yes yes yes yes yes yes
Dust Ex-Zone 21 no no no no no yes
Gas Ex-Zone 2 no no no no no yes
Gas Ex-Zone 1 no no no no no yes
Explosion protection* yes yes yes yes yes yes
Fire protection* yes yes yes yes yes yes
Activated carbon filter yes yes yes yes yes yes
Stainless steel version yes yes yes yes yes yes
*) Indoor installation - Data are subject of technical changes.
Right trimmed columns can be scrolled (wiped) to the left!

Deduster ASPUR aero2 eco
Special features

  • ASPUR-NOISE-ELIMINATOR  - With reduced noise level due to highly efficient sound insulation
  • ASPUR-EASY-FILTERCHANGE  - Simple, tool-free filter change
  • ASPUR-Expansion-Extraction-System  - Baffle plate, deflection and abrupt expansion of the intake process air, reduces the filter load and enables coarse particle separation
Deduster ASPUR aero2 eco
Device functions
ASPUR deduster aero2eco

Controller ASPUR deduster
