OIL MIST SEPARATOR
FOR APPLICATION IN DRILLING, LATHING AND MILLING
ASPUR AEROG5
DESIGNED FOR THE EXTRACTION OF AEROSOLS, VAPORS AND FUMES
ASPUR aerog5

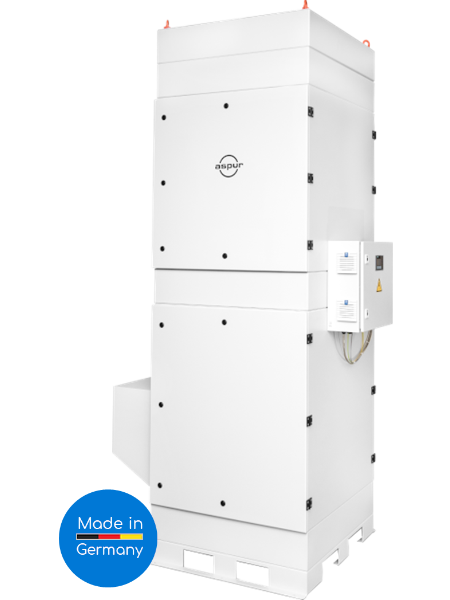

Oil mist separator ASPUR aerog5

Oil mist separators of the aerog5 assembly are used in the manufacturing industry to extract and safely separate oil mist, emulsion mist, aqueous solutions, fumes and gases* with proportionate solids. The installation of the units indoors and the recirculation of the cleaned air comply with the current TRGS guidelines.
*) only with activated carbon filter
The plants are equipped with Siemens IE3 motors of the latest generation. Together with the installed frequency converter, the motors can be variably adjusted to the desired outputs. Due to this equipment, only the actually necessary power is called up, which reduces power consumption and wear.
Large access doors installed on both sides, which extend over the entire height and width of the modules, allow the user quick and service-friendly access to all components. In addition, all filter systems are designed to be changed without tools. The high-quality filter system with integrated HEPA H13 filter, stands for a long operating time with simultaneous best separation results.
Due to the modular design, HEPA filters, activated carbon filters, explosion and fire protection systems as well as various discharge systems can be added according to the customer's individual requirements and, under certain circumstances, upgraded at a later date.
 Standard equipment
 Optional equipment

Product data

Product features

High-quality, multi-stage filter system
Integrated H13 filter
Simple, fast and tool-free filter changing
Coarse filter replaceable
Large access doors on both sides (service-friendly)
IE3 centrifugal fan of the latest generation
Control cabinet with frequency inverter and display (user-friendly)

Order our oil mist seperator aerog1 for your workplaces!

Optional device features

Gas-Ex Z2 and Z1
Pump for recirculation of the separated liquids
Completely available in stainless steel design
All RAL colors in powder coating in powder coating
Activated carbon filtersystem
Explosion and fire protection equipment

Order our oil mist seperator aerog1 for your workplaces!

Areas of application

Processes
Lasering, welding, cutting» click here

Materials
Aerosole, vapors» click here
Fume, smoke» click here

Order now our storage filter airsorb2 for your workplaces!

Technical data

  aerog5 D11 M
aerog5 D15 M
aerog5 D30 M
Item no. 9030000 9030008 9030009
Air volume flow max. 9000 m³/h max. 13000 m³/h max. 18000 m³/h
Negative pressure max. 6000 PA max. 7500 PA max. 9500 PA
Drive power 11 kW 15 kW 30 kW
Voltage 400 V 400 V 400 V
Sound emission 66 dB(A) 69 db(A) 72 dB(A)
Weight 1030 kg 1120 kg 1210 kg

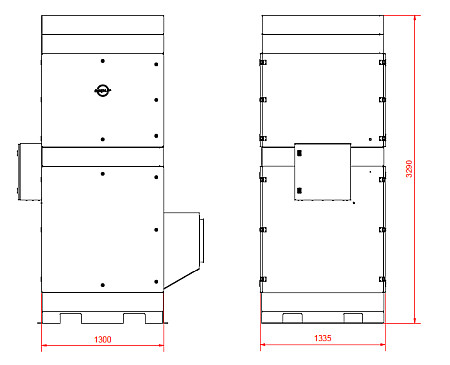

Dimensions (l,w,h) 1300x1300x3300 mm 1300x1300x3300 mm 1300x1300x3300 mm

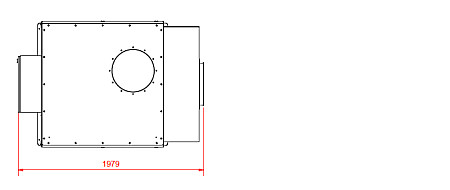

Dimensions¹ (l,b,h) 1300x1980x3300 mm 1300x1980x3300 mm 1300x1980x3300 mm
Intake port (d) 450 mm 450 mm 450 mm
Collection tray² 440 L 440 L 440 L
Powder coating RAL9016 mat RAL9016 mat RAL9016 mat
Filter class H13 H13 H13
Filter surface 120 m² (6 cartridges) 120 m² (6 cartridges) 120 m² (6 cartridges)
Filter surface load 75 m³/m²/h 108 m³/m²/h 100 m³/m²/h
Controller³ Siemens Logo® Siemens Logo® Siemens Logo®
¹) Incl. extraction box & control cabinet   ²) Collection tray sump   ³) With Modbus TCP connection
Right trimmed columns can be scrolled (wiped) to the left!

Optional features
  aerog5 D11
aerog5 D15
aerog5 D30
HEPA H14 filter yes yes yes
Gas Ex-Zone 2 yes yes yes
Gas Ex-Zone 1 yes yes yes
Explosion prevention* yes yes yes
Fire prevention* yes yes yes
Activated carbon filter yes yes yes
Stainless steel version yes yes yes
*) For indoor installation
Data are subject of technical changes.
Right trimmed columns can be scrolled (wiped) to the left!

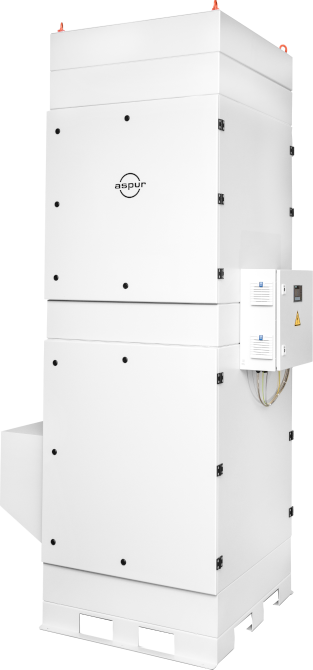

Oil mist separator ASPUR aerog5
Special features

  • ASPUR-MODULAR-DESIGN  - Structure in modular assemblies, enables extensive variety of variants
  • ASPUR-DOOR-SYSTEM  - Large doors for barrier-free access
  • ASPUR-NOISE-ELIMINATOR - With reduced noise level due to motor sound insulation
  • ASPUR-SAFETY-FILTERCHANGE - Simple, tool-free filter change
  • ASPUR EXPANSIONS-ANSAUGSYSTEM - Baffle plate, deflection and abrupt expansion of the intake process air, reduces the filter load and enables coarse particle separation
Oil mist separator ASPUR aerog5
Device features
ASPUR Oil mist separator aerog5

Oil mist separator controller
Made in

Germany
More info
